C600 Electro-hydraulic Operating Table
Description About this product:-
The Mediland C600 Electro-hydraulic Operating Table is a versatile and robust solution designed to meet a wide range of surgical needs. Below is a detailed overview of its features and specifications:
Key Features:

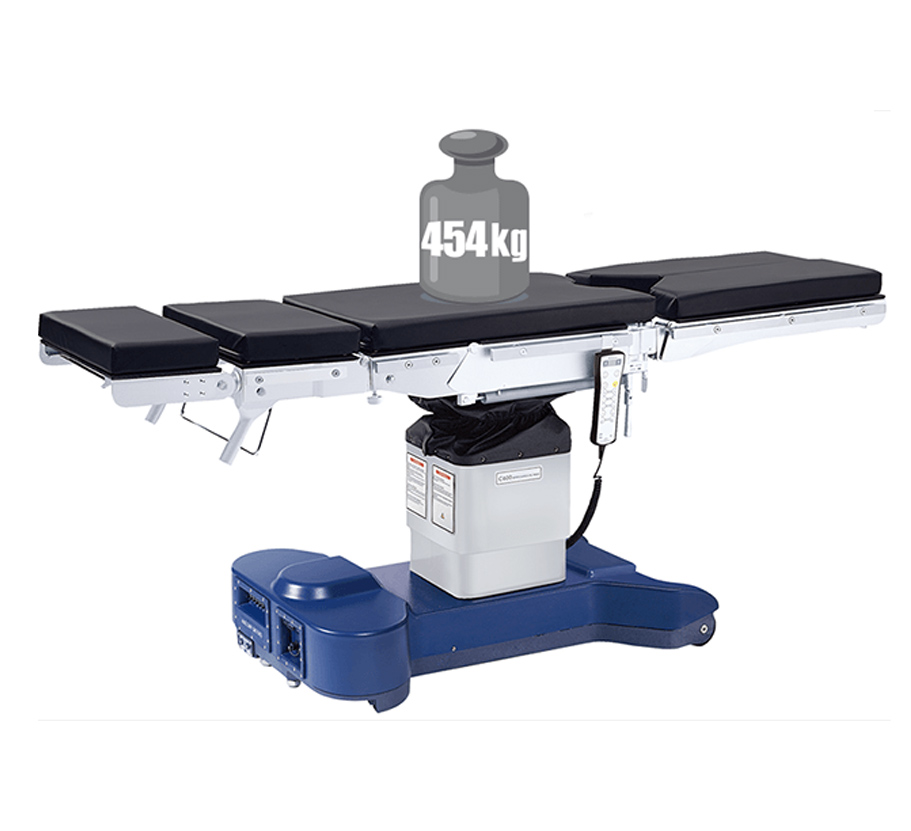

- High Patient Weight Capacity: Supports up to 454 kg, ensuring stability and safety during various surgical procedures.
- Ultra-Low Tabletop Height: Adjustable height ranging from 520 mm to 1,120 mm (without mattress), accommodating surgical specialties that require seated positions for extended periods.
- Durable Base Cover: Constructed with high-resistance ABS plastic, offering robust protection and easy maintenance. A stainless steel base cover is also available as an option.
- Radiolucent Cassette Tunnel: Built-in full-length 14-inch radiolucent cassette tunnel facilitates seamless X-ray imaging without repositioning the patient.
- Rechargeable Battery System: Equipped with rechargeable built-in batteries capable of performing up to 80 complete procedure routes on a single charge, ensuring uninterrupted operation.
- Longitudinal Electrical Sliding: Offers up to 300 mm of longitudinal electrical sliding towards the head section, enhancing C-arm accessibility without the need to reposition the patient.
- Carbon-Fiber Kidney Elevator: Provides a radiolucent carbon-fiber kidney elevator with a lift of up to 120 mm, ensuring optimal imaging during kidney surgeries.
- Orthopedic Extension Devices: Available in carbon fiber or stainless steel, these devices facilitate flexible positioning during orthopedic fracture procedures.
Technical Specifications:
- Table Length: 2,072 mm
- Table Width (without side rails): 520 mm
- Table Height (without mattress): 680 mm to 1,120 mm (standard models); 520 mm to 1,120 mm (N-model)
- Trendelenburg/Reverse Trendelenburg: 30°/30°
- Lateral Tilt (Left/Right): 20°/20°
- Head Section (Up/Down): 60°/90°
- Back Section (Up/Down): 80°/50°
- Leg Section (Up/Down): 20°/90°
- Leg Section (Open/2 plates): 0° to 180°
- Flex/Reflex Angles: 230°/100°
- Kidney Elevator Lift: 120 mm
- Longitudinal Sliding: Up to 300 mm towards the head section (N-model)
- Weight Capacity: 454 kg
The C600 series offers various models with optional features to cater to different surgical requirements, including configurations with carbon fiber kidney elevators, electrical sliding, auto-leveling, low-profile tabletops, and extra shoulder sections.
