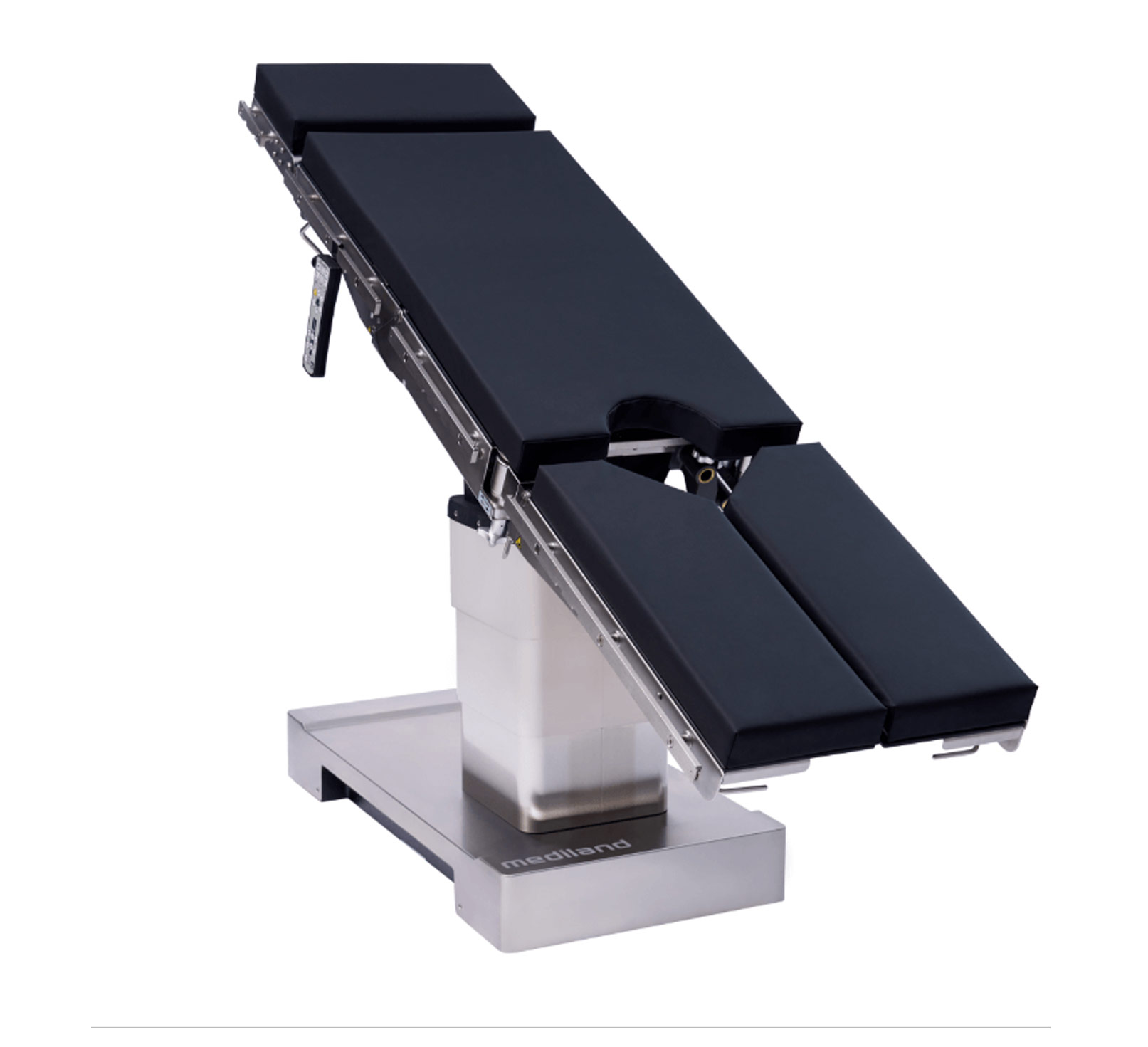

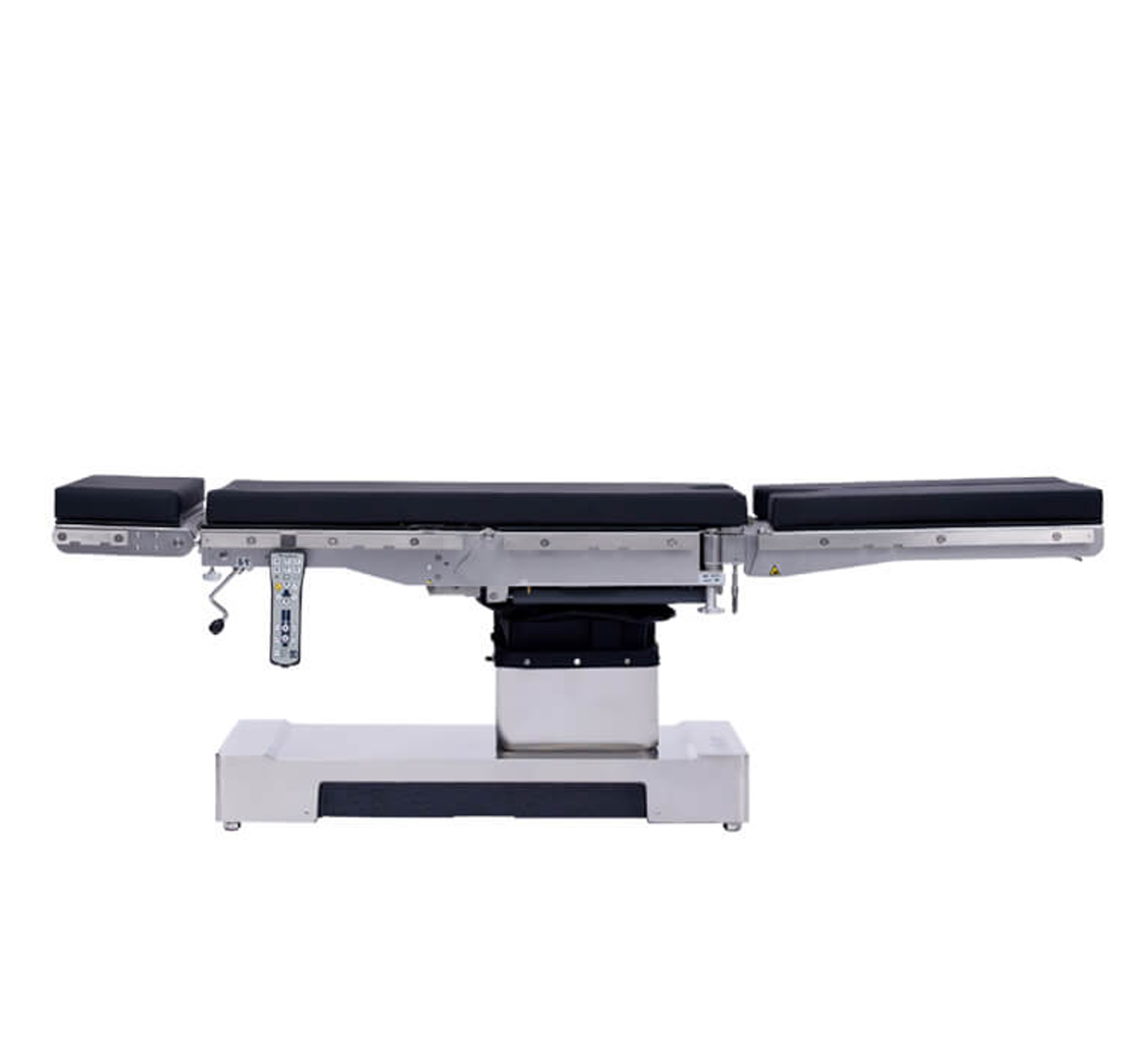

C800 Electro-hydraulic Operating Table
Description About this product:-
The Mediland C800 Electro-hydraulic Operating Table is a state-of-the-art solution designed to enhance surgical workflows with precise positioning and speed control. Below is an overview of its key features and technical specifications:
Key Features:
- Patented Hydraulic Speed Control System: The Cratos Force system offers precise positioning and speed control, improving workflow efficiency and patient safety.

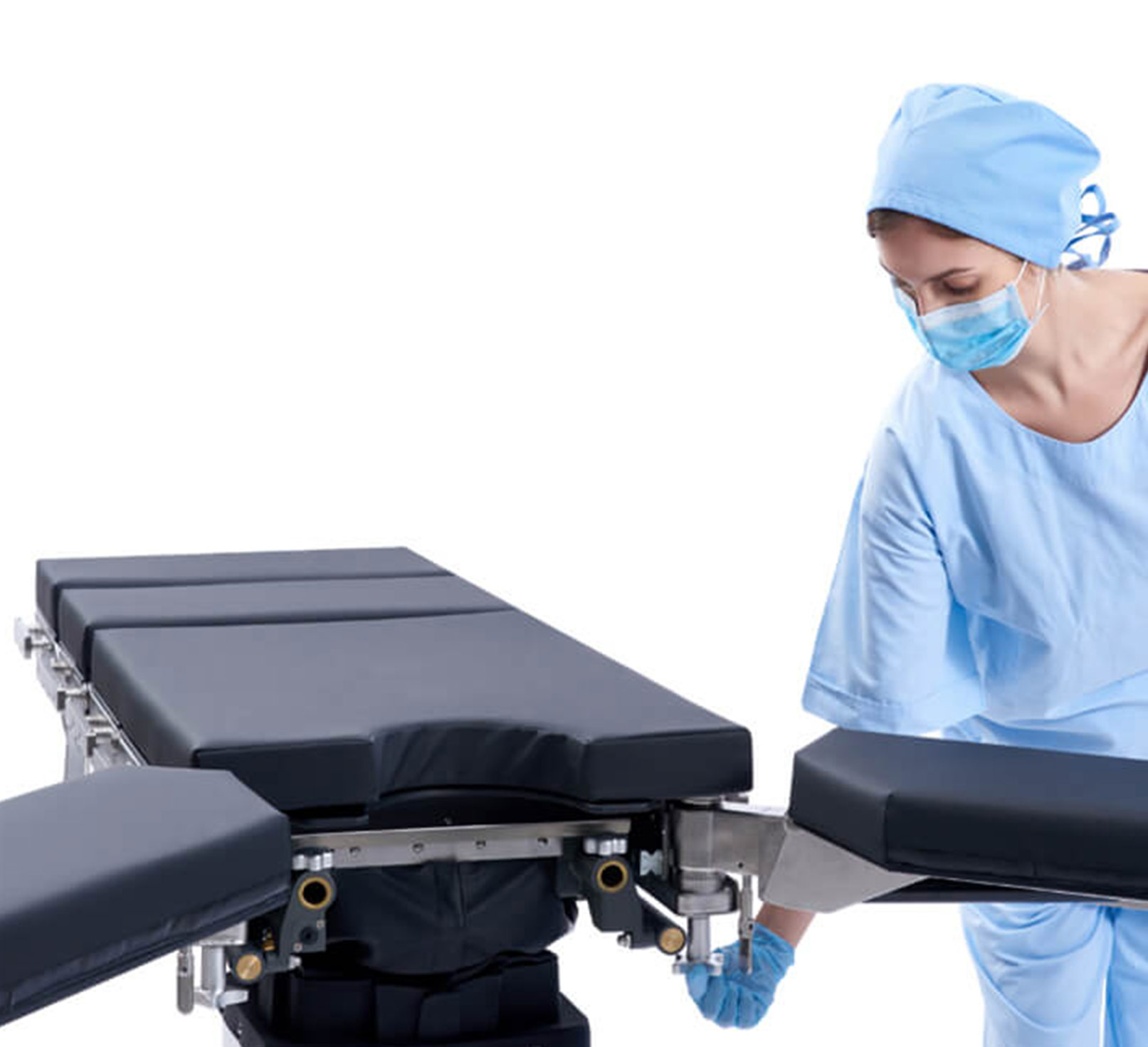

- Interchangeable Head and Leg Sections: The Rapid-Link design allows effortless replacement of the head and leg sections, accommodating various surgical requirements.
- Ultra-Low Tabletop Height: The tabletop can be adjusted to a minimum height of 600 mm, providing comfort for surgeons during procedures that require seated positions.
- Carbon Fiber Kidney Elevator: Equipped with a built-in carbon fiber kidney elevator offering a lift of up to 120 mm, ensuring superior imaging capabilities during kidney surgeries.
- Electrical Sliding: Features a longitudinal slide of up to 300 mm, enhancing C-arm accessibility and expanding the imaging area without the need to reposition the patient.
- Auto-Levelling Function: The table can quickly resume a level position, increasing efficiency during surgical procedures.
- Intuitive Control Interface: Comes with a backlit hand controller and optional wireless tablet, providing memory functions for numerous surgical positions and one-button control to recall stored positions.
Technical Specifications:
- Table Length: 2,072 mm
- Table Width (without side rails): 520 mm
- Table Height (without mattress): 600 mm to 1,100 mm
- Trendelenburg/Reverse Trendelenburg: 21°/31°
- Lateral Tilt (Left/Right): 20°/20°
- Head Section (Up/Down): 60°/90°
- Back Section (Up/Down): 80°/50°
- Leg Section (Up/Down): 20°/90°
- Leg Section (Open/2 plates): 0° to 180°
- Flex/Reflex Angles: 230°/100°
- Kidney Elevator Lift: 120 mm (K-model)
- Longitudinal Sliding: Up to 300 mm (S-model)
- Weight Capacity: 454 kg
The C800 series offers various models with optional features to cater to different surgical requirements, including configurations with carbon fiber kidney elevators, electrical sliding, auto-levelling, and additional shoulder sections.
