C660 OT Table
Description About this product:-

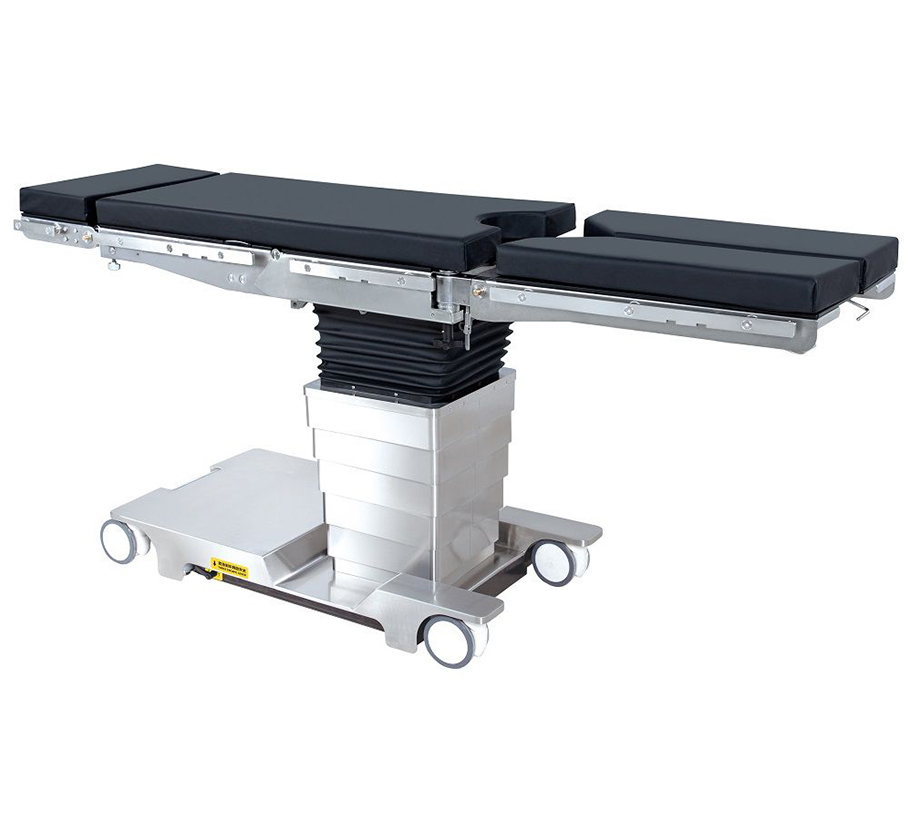

The Mediland C660 Electro-hydraulic Operating Table is a versatile and robust solution designed to meet a wide range of surgical needs. Below is a detailed overview of its features and specifications:
Key Features:
- Interchangeable Head and Leg Sections: The Rapid-Link design allows effortless and safe replacement of the head and leg sections, enhancing flexibility for various surgical procedures.

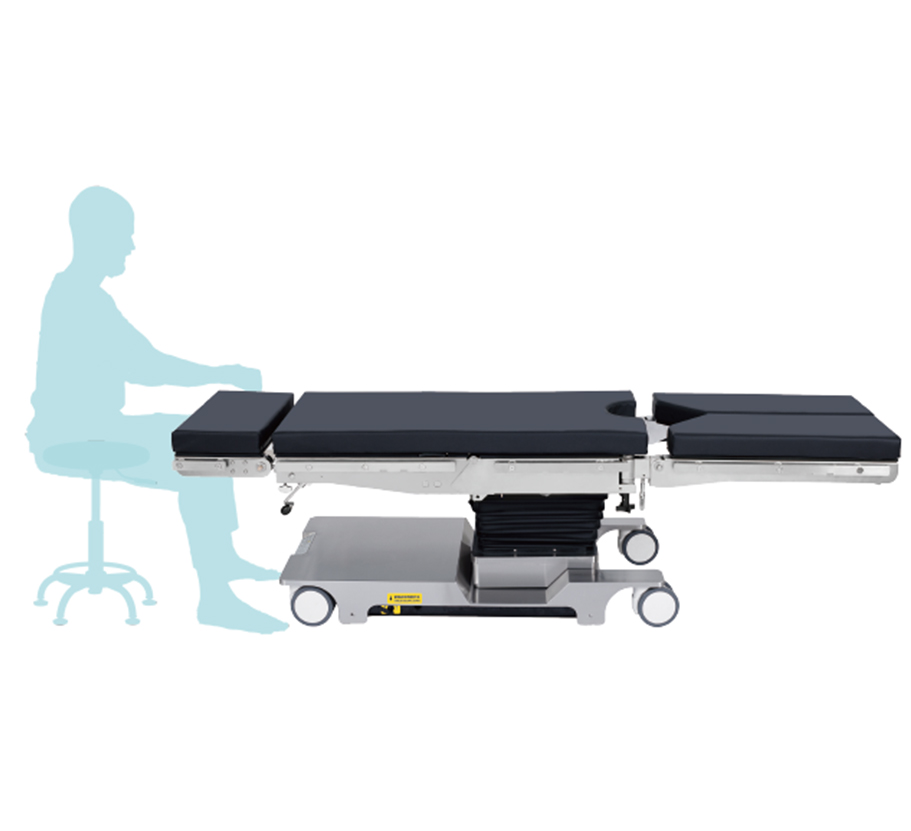

- Ultra-Low Tabletop Design: The tabletop can be lowered to a height of 520 mm, enabling surgeons to maintain a comfortable seated posture during extended procedures.
- Carbon Fiber Kidney Elevator: Provides exceptional X-ray transparency with a lift of up to 120 mm, ensuring superior imaging capabilities during kidney surgeries.
- Electrical Sliding: Offers a longitudinal slide of up to 350 mm, expanding the X-ray imaging area and enhancing C-arm accessibility without the need to reposition the patient.
- Stainless Steel Base: Features a compact stainless steel modular base that is easy to clean and provides extensive legroom, improving comfort and maneuverability for surgical teams.
- Dual Operating System and Emergency Braking: Equipped with an auxiliary control system for emergency backup and an emergency switch for floor locks, enhancing safety during surgical procedures.
Technical Specifications:
- Table Length: 2,072 mm
- Table Width (without side rails): 520 mm
- Table Height (without mattress): 680 mm to 1,120 mm; 520 mm to 1,120 mm (N-model)
- Trendelenburg/Reverse Trendelenburg: 30°/30°; 26°/26° (N-model)
- Lateral Tilt (Left/Right): 20°/20°
- Head Section (Up/Down): 60°/90°
- Back Section (Up/Down): 80°/50°
- Leg Section (Up/Down): 20°/90°
- Leg Section (Open/2 plates): 0° to 180°
- Flex/Reflex Angles: 230°/100°
- Kidney Elevator Lift: 120 mm (K-model)
- Longitudinal Sliding: Up to 350 mm (S-model)
- Weight Capacity: 454 kg
The C660 series offers various models with optional features to cater to different surgical requirements, including configurations with carbon fiber kidney elevators, electrical sliding, auto-leveling, low-profile tabletops, and additional shoulder sections.
For more detailed information and specifications, please refer to the Mediland C660 Electro-hydraulic Operating Table product page.
